Edge-of-Dock Levelers: Benefits, Limitations, and Applications

Optimizing Your Warehouse Operations: Understanding Edge-of-Dock Levelers

In the fast-paced world of industrial material handling, efficiency and safety at the loading dock are paramount. Warehouse managers, facility managers, safety professionals, and purchasing departments are constantly seeking solutions to streamline operations, reduce bottlenecks, and prevent costly accidents. One piece of equipment that plays a crucial, often understated, role in achieving these goals is the edge-of-dock leveler. Unlike their pit-style counterparts, these versatile devices offer a unique set of advantages and considerations for facilities with specific operational needs. This comprehensive guide will delve into the benefits, limitations, and diverse applications of edge-of-dock levelers, helping you determine if they are the right fit for your operations.

For those interested in exploring more about material handling solutions, a related article can be found at the Fredon Handling Education Center. This resource offers valuable insights into various equipment options, including edge-of-dock levelers, and discusses their benefits, limitations, and applications in different industries. To learn more, visit Fredon Handling Education Center.

The Fundamental Role of Dock Levelers in Material Flow

The loading dock is the nexus of a warehouse’s inbound and outbound logistics. It’s where raw materials enter, finished goods depart, and the efficiency of this transition directly impacts the entire supply chain. Without proper bridging solutions between the warehouse floor and the trailer bed, significant gaps and height differentials can create formidable obstacles. These discrepancies can lead to:

Manual Handling Strain: Workers may be forced to manually lift and carry goods over uneven surfaces, increasing the risk of back injuries and other musculoskeletal disorders.
Equipment Damage: Forklifts, pallet jacks, and other material handling equipment can sustain damage from jarring impacts or being driven over unsupported edges.
Product Damage: Dropped or jostled goods can result in significant financial losses due to spoilage or damage.
Operational Delays: The time spent maneuvering around these challenges and the potential for accidents can significantly slow down loading and unloading processes.

Dock levelers, in general, are designed to bridge this gap, creating a smooth, continuous surface for seamless material transfer. They come in various types, each suited to different applications. Among these, the edge-of-dock leveler stands out for its specific design and benefits, particularly in scenarios where space or structural considerations are a factor.

Unpacking the Edge-of-Dock Leveler: Design and Functionality

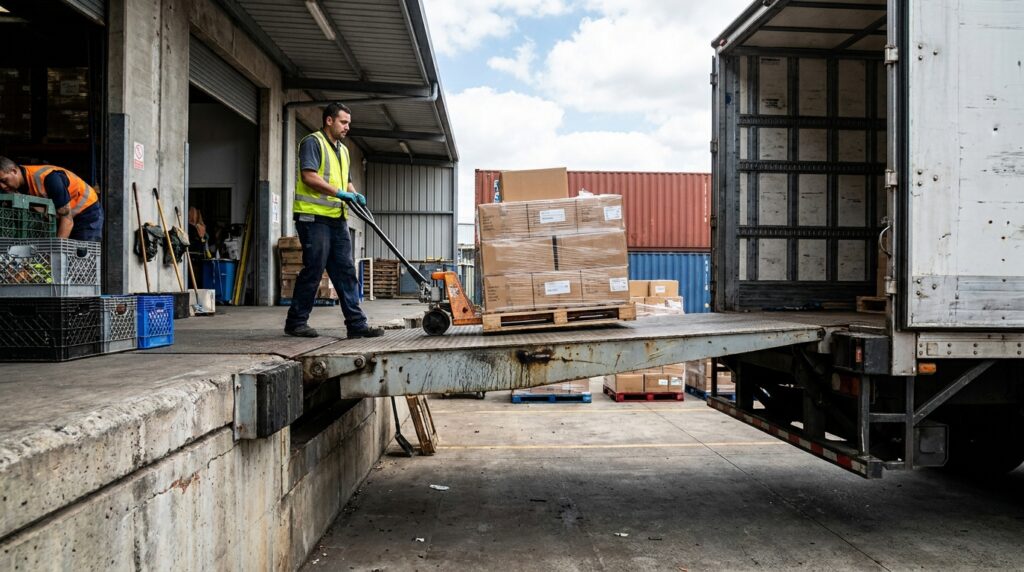

An edge-of-dock leveler is a mechanical device that mounts directly onto the dock face, typically at the edge of the concrete dock slab. Its primary function is to compensate for vertical and horizontal discrepancies between the loading dock and the trailer bed. Unlike pit-style levelers, which require a pre-constructed pit in the dock floor, edge-of-dock levelers are designed for simpler installation and are ideal for retrofitting or for facilities where constructing a pit is not feasible or economical.

The typical operation involves the leveler’s lip extending over the edge of the dock and resting on the trailer floor. When a trailer is backed up to the dock, the leveler is manually or hydraulically activated.

How Edge-of-Dock Levelers Work

Positioning: A trailer is backed into the dock bay, ideally using proper trailer restraint systems.
Activation: The dock leveler is activated. This can be achieved through:

Manual Operation: A pull chain or lever mechanism raises the deck, allowing the lip to extend.
Hydraulic Operation: An electric or air-powered hydraulic system smoothly raises the deck and extends the lip.

Bridging the Gap: The lip of the leveler rests securely on the trailer floor, creating a stable transition ramp.
Loading/Unloading: Material handling equipment, such as forklifts and pallet jacks, can then traverse the leveler to move goods in and out of the trailer.
Retraction: Once loading or unloading is complete, the leveler is retracted, and the dock door can be closed.

The key differentiator from pit-style levelers is their mounting location. This direct mounting at the dock edge offers specific advantages and also presents certain limitations that are important to understand for informed decision-making.

The Advantages of Choosing Edge-of-Dock Levelers

For many facilities, the decision to opt for edge-of-dock levelers stems from a combination of practical benefits that directly impact operational efficiency, safety, and cost-effectiveness.

Seamless Trailer Transition and Improved Workflow

The primary benefit of any dock leveler is creating a smooth transition, and edge-of-dock levelers excel at this. They effectively bridge the gap and compensate for moderate height differences, allowing forklifts and pallet jacks to move freely between the warehouse and the trailer. This eliminates the need for manual labor to bridge small gaps or navigate uneven surfaces, significantly speeding up the loading and unloading process. This reduction in transition time contributes to:

Increased Throughput: More loads can be processed in a given timeframe, leading to higher overall warehouse productivity.
Reduced Driver Wait Times: Faster loading and unloading mean trucks spend less time waiting at the dock, improving fleet efficiency and reducing demurrage charges.
Smoother Operations: Fewer disruptions and delays lead to a more predictable and efficient workflow throughout the warehouse.

Enhanced Safety Protocols

Safety is a non-negotiable aspect of any industrial operation. Edge-of-dock levelers contribute to a safer working environment by:

Minimizing Trip and Fall Hazards: The level surface created by the leveler significantly reduces the risk of personnel tripping or falling while moving between the dock and the trailer.
Reducing Equipment Strain and Accidents: By providing a stable, continuous ramp, levelers prevent jarring impacts on forklifts and other equipment, reducing the likelihood of accidents caused by sudden stops or uneven terrain. This also protects the equipment itself from premature wear and tear.
Preventing Trailer Separation Accidents: When properly engaged, the lip of the leveler provides a physical connection that helps prevent accidental trailer movement during loading and unloading.
Supporting Safe Manual Handling: While automated systems are preferred, when manual handling is necessary, the level surface provides a safer pathway for workers.

Space Efficiency and Installation Simplicity

One of the most significant advantages of edge-of-dock levelers is their compact design and straightforward installation.

No Pit Required: This is a major differentiating factor. Unlike pit-style levelers that necessitate extensive concrete cutting and forming during initial construction or renovation, edge-of-dock levelers mount directly to the dock face. This makes them ideal for:
Existing Facilities: Retrofitting is much simpler and less disruptive.
Limited Space: They require minimal vertical space within the dock structure.
Cost Savings: Eliminating the need for pit construction can lead to substantial savings in labor and materials.
Quick Installation: Installation typically involves bolting the unit to the dock face and connecting to power (for hydraulic models), making it a faster process than installing a pit-style leveler. This minimizes downtime during implementation.

Versatility in Trailer Compatibility

Edge-of-dock levelers are designed to accommodate a range of trailer heights and bed differentials. While they are best suited for applications with moderate height variations, they can effectively manage typical discrepancies encountered in many shipping and receiving operations. This adaptability makes them a practical choice for facilities that receive a variety of trailer types.

Cost-Effectiveness for Specific Applications

For businesses that do not require the extreme range of motion or heavy-duty capabilities of pit-style levelers, edge-of-dock models often present a more budget-friendly solution. The lower initial investment, combined with simpler installation and potentially lower maintenance costs, can make them a highly attractive option for businesses seeking to optimize their loading dock efficiency without a major capital expenditure.

Edge-of-dock levelers are essential for optimizing loading and unloading processes in warehouses, offering various benefits such as improved safety and efficiency. However, it is important to consider their limitations and specific applications to ensure they meet the needs of your operations. For a broader understanding of how different material handling equipment can enhance warehouse efficiency, you might find this article on top material handling equipment for efficient warehouse operations helpful. You can read it here.

Understanding the Limitations of Edge-of-Dock Levelers

While edge-of-dock levelers offer compelling advantages, it’s crucial to acknowledge their limitations to ensure they are the right tool for your specific operational needs. Understanding these constraints will prevent potential issues and help you make an informed purchasing decision.

Limited Vertical and Horizontal Adjustment Range

The most significant limitation of edge-of-dock levelers is their inherent design, which restricts their ability to compensate for extreme vertical or horizontal discrepancies between the dock and the trailer.

Vertical Range: Typically, edge-of-dock levelers can only compensate for a few inches of vertical difference (e.g., up to 4-5 inches above or below the dock height). If you frequently deal with trailers that are significantly higher or lower than your dock, an edge-of-dock leveler may not provide a safe or sufficient bridge.
Horizontal Range: While they offer some slight horizontal adjustment, they are not designed to accommodate trailers that are significantly out of alignment with the dock. The lip needs to rest securely on the trailer bed for safe operation.

When this is a problem: Facilities that experience a wide variance in trailer bed heights (e.g., due to varying trailer types, suspension issues, or uneven loading) or that frequently deal with trailers not perfectly centered at the dock may find edge-of-dock levelers insufficient. In such cases, a pit-style dock leveler with a greater range of articulation or a wheel chock system with a loading ramp might be more appropriate.

Reduced Structural Support and Durability Considerations

Because they are mounted directly onto the dock face without the support of a pit structure, edge-of-dock levelers can have different durability and load-bearing characteristics compared to their pit-style counterparts.

Wear and Tear on Dock Face: The constant articulation and load bearing can place stress on the dock face. Proper installation and regular maintenance are crucial to prevent damage to the dock structure.
Load Capacity: While designed for industrial use, their load capacities may be lower than heavy-duty pit-style levelers. It’s essential to match
